Kemlon Kemlon

K-25 BMA2P

K-25 BMA2P
Description Part Number Construction Max. Temp. (F) Max. Pressure (PSIG) Current (A) Max. Voltage
K-25 BMA2P 16-B-1925 glass / polyether 500 20,000 7 4000
16-B-1926 glass / ceramic 500 20,000 7 5000

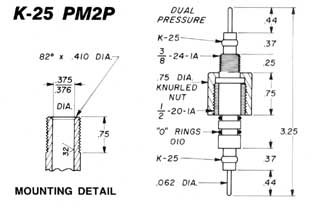

K-25 PM2P

K25 PM2P
Description Part Number Construction Max. Temp. (F) Max. Pressure (PSIG) Current (A) Max. Voltage
K-25 PM2P 16-B-1928 polyether 450 10,000 18 3000
16-B-1929 glass / polyether 500 10,000 7 4000
16-B-1930 glass / ceramic 500 10,000 7 5000

K-16 2P

K162P
Description Part Number Construction Max. Temp. (F) Max. Pressure (PSIG) Current (A) Max. Voltage
K-16 2P 16-B-1932 polyether 450 10,000 12 1500
16-B-1933 glass / polyether 500 10,000 7 1000
16-B-1934 glass / ceramic 500 10,000 7 1000

K-25 DL2P

k25DL2P
Description Part Number Construction Max. Temp. (F) Max. Pressure (PSIG) Current (A) Max. Voltage
K-25 DL2P 16-B-1936 polyether 450 8,000 18 3000
16-B-1937 glass / polyether 500 8,000 7 4000
16-B-1938 glass / ceramic 500 8000 7 5000
