PMF
Construction / Specifications
| Temperature: |
-60° C to 260°
C |
| Pressure: |
0 to 25,000 PSI |
| Body: |
Inconel |
| Pin: |
Kovar, gold
plated |
| Insulation: |
Ceramic |
| Seal |
Glass |
| "O"
Ring |
AS-568 Viton |
| Pin
Size |
Maximum
Voltage VDC |
Operating
Voltage VDC |
Maximum
Current Amps, 20°
C |
Maximum
Current Amps, 260°
C |
| #20 |
500 |
250 |
3.3 |
2.5 |
| #16 |
1000 |
500 |
5.4 |
4.0 |
Inconel Body
| Part
Number |
Shell
Insert |
#
- Size Contacts |
A
- Flange Dia. |
B
- Overall Length |
C
- Pin Lenght |
D
- Overall Length |
E
- Mounting Bore |
F
- Mounting Depth |
G
- "O"-Ring |
| 16-B-04091 |
10-5 |
5
# 20 |
0.68 |
6-32 |
0.37 |
1.74 |
0.500-0.501 |
0.61 |
-
012 |
| 16-B-04092 |
10-99 |
7
# 20 |
0.75 |
6-32 |
0.37 |
1.74 |
0.562-0.563 |
0.61 |
-
013 |
| 16-B-03960 |
12-10 |
10
# 20 |
0.93 |
6-32 |
0.37 |
1.74 |
0.687-0.688 |
0.61 |
-
015 |
| 16-B-03961 |
12-12 |
12
# 20 |
0.93 |
6-32 |
0.37 |
1.72 |
0.687-0.688 |
0.61 |
-
015 |
| 16-C-03962 |
14-19 |
19
# 20 |
1.06 |
6-32 |
0.37 |
1.86 |
0.875-0.876 |
0.74 |
-
115 |
| 16-C-03963 |
22-55 |
55
# 20 |
1.50 |
6-32 |
0.37 |
1.92 |
1.312-1.313 |
0.80 |
-
122 |
| 16-B-04089 |
14S-5 |
5
# 16 |
0.81 |
8-32 |
0.44 |
1.86 |
0.625-0.626 |
0.61 |
-
014 |
| 16-B-04090 |
16S-1 |
7
# 16 |
0.93 |
8-32 |
0.44 |
1.86 |
0.750-0.751 |
0.61 |
-
016 |
| 16-B-03964 |
18-1 |
10
# 16 |
1.00 |
6-32 |
0.44 |
1.86 |
0.875-0.876 |
0.61 |
-
018 |
| 16-B-03965 |
20-27 |
14
# 16 |
1.25 |
8-32 |
0.44 |
2.06 |
1.062-1.063 |
0.80 |
-
118 |
| 16-C-03966 |
20-29 |
17
# 16 |
1.25 |
8-32 |
0.44 |
2.06 |
1.062-1.063 |
0.80 |
-
118 |
| 16-C-03967 |
28-12 |
26
# 16 |
1.68 |
10-32 |
0.44 |
2.06 |
1.437-1.438 |
0.80 |
-
124 |
| 16-C-03968 |
28-21 |
37
# 16 |
1.81 |
0.25-28 |
0.44 |
2.20 |
1.562-1.563 |
0.94 |
-
219 |
| 16-C-03929 |
40-62 |
60
# 16 |
2.62 |
0.375-24 |
0.44 |
2.24 |
2.250-2.251 |
1.04 |
-
226 |

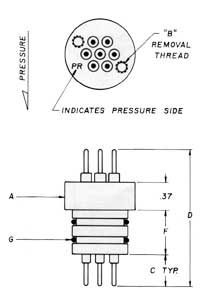

Optional Mounting Diagram
