PMJ
Construction / Specifications
| Temperature:
|
-60°C
to 200°C |
| Pressure:
|
0
to 20,000 PSI |
| Operating
Voltage:
|
500 VDC |
| Maximum Voltage:
|
1000 VDC |
| Current @ 20°
C:
|
8.8 A |
| Current @ 200°
C:
|
5.8 A |
| Body:
|
304
S.S. |
| Pin:
|
Nickel/Iron
gold plated |
| Insulation:
|
Plastic/Ceramic |
| Seal
|
Glass |
| "O"
Ring:
|
Nitrile |
S.S. Body
| Part
Number
|
Shell
Insert
|
#
- Size Contacts
|
Contact
Type
|
(A)
Thread UN - 2A
|
(B)
Nominal Diameter
|
(C)
Thread Length
|
(D)
Seal Length
|
(E)
Overall Length
|
| 16-B-01303 |
10SL
-3 |
3
#16 |
PIN |
0.5625
- 18 |
0.750 |
0.50 |
0.62 |
1.77 |
| 16-B-01304 |
10SL
- 3 |
3
#16 |
SOCKET |
0.5625
- 18 |
0.750 |
0.50 |
0.62 |
1.99 |
| 16-B-01305 |
14SL
- 5 |
5
#16 |
PIN |
0.6875
- 24 |
0.875 |
0.50 |
0.62 |
1.77 |
| 16-B-01306 |
14SL
- 5 |
5
#16 |
SOCKET |
0.6875
- 24 |
0.875 |
0.50 |
0.62 |
1.99 |
| 16-B-01307 |
16S
- 1 |
7
#16 |
PIN |
0.75
- 16 |
1.000 |
0.50 |
0.62 |
1.80 |
| 16-B-01308 |
16S
- 1 |
7
#16 |
SOCKET |
0.75
- 16 |
1.000 |
0.50 |
0.62 |
1.99 |
| 16-B-01309 |
18
- 1 |
10
#16 |
PIN |
1
- 12 |
1.375 |
0.50 |
0.75 |
1.93 |
| 16-B-01310 |
18
- 1 |
10
#16 |
SOCKET |
1
- 12 |
1.375 |
0.50 |
0.75 |
2.12 |
| 16-B-01311 |
20
- 27 |
14
#16 |
PIN |
1.125
- 18 |
1.750 |
0.52 |
0.75 |
2.18 |
| 16-B-01312 |
20
- 27 |
14
#16 |
SOCKET |
1.125
- 18 |
1.750 |
0.52 |
0.75 |
2.18 |
| 16-C-00671 |
20
- 29 |
17
#16 |
PIN |
1.125
- 18 |
1.750 |
0.53 |
0.94 |
2.38 |
| 16-C-00670 |
20
- 29 |
17
#16 |
SOCKET |
1.125
- 18 |
1.750 |
0.53 |
0.94 |
2.18 |

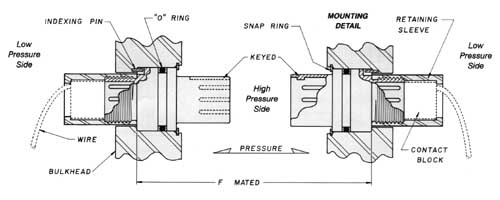

Optional Mounting Diagram
