Wellhead
Connector Mandrel / Dual Seals -
Explosion Proof Surface End
Construction / Specifications
| Body
|
4140 Alloy Steel,
cadmium plated |
| Pin
|
Copper, high
conductivity gold plated |
| Insulation
|
- KN-79, EPDM elastomer
- KN-01 Neoprene face
- High Temp Epoxy
|
| Surface End
|
Explosion Proof Class
1, Div 2 |
| Voltage
|
5000 VAC |
| Temperature
|
-65 to 250 F, KN-01 |
| Option 2
|
-20 to 400 F, KN-84 |
| Option 3
|
-55 to 300 F, KN-82 |

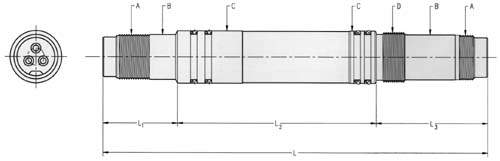

Data
| Part
Number
|
Current
Amps
|
Pin
Dia.
|
A
|
B
|
C
|
D
|
L
|
L1
|
L2
|
L3
|
| 16-B-09620 |
125 |
0.250 |
2.125
- 12 |
2.13 |
2.50 |
2.375
- 8 |
19.0 |
3.5 |
9.56 |
5.94 |
| 16-B-09621 |
125 |
0.250 |
2.125
- 12 |
2.13 |
2.50 |
2.375
- 8 |
24.0 |
3.5 |
9.56 |
10.94 |
| 16-B-09622 |
150 |
0.281 |
2.437
- 12 |
2.50 |
2.875 |
2.750
- 8 |
19.0 |
3.5 |
9.56 |
5.94 |
| 16-B-09623 |
150 |
0.281 |
2.437
- 12 |
2.50 |
2.875 |
2.750
- 8 |
24.0 |
3.5 |
9.56 |
10.94 |
Mounting Information
| Part
Number
|
Current
Amps
|
Pin
|
T - max
|
W - Dia
|
| 16-B-09620 |
125 |
0.250 |
13.15 |
2.500 - 2.502 |
| 16-B-09621 |
125 |
0.250 |
18.15 |
2.500 - 2.502 |
| 16-B-09622 |
150 |
0.281 |
13.15 |
2.875 - 2.877 |
| 16-B-09623 |
150 |
0.281 |
18.15 |
2.875 - 2.877 |
